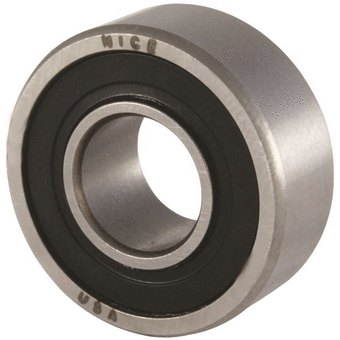

1604DCTNTG18 Double Seal, 52100 Bearing Quality Steel, 0.3750" Bore x 0.8750" OD x 0.3438" Width
Unit of Measure

Specifications

Type

 N/A Double Seal

Series

 N/A Nice®

Material

 N/A 52100 Bearing Quality Steel

Finish

 N/A Chrome Steel

Lubricant

 N/A Shell Gadus

Speed [Max]

 N/A 5000 rpm

Operating Temperature [Max]

 N/A 300 ºF

Dynamic Load Rating (C)

 N/A 644 lbf

Static Load Rating (Co)

 N/A 255 lbf

Weight

 N/A 0.03 lb

Dimensions

Bore (d)

 N/A 0.38 in

Outside Diameter (D)

 N/A 0.88 in

Width (B)

 N/A 0.3438 in

Outside Ring Width

 N/A 0.778 in

Inside Ring Width

 N/A 0.474 in

Radius (r)

 N/A 0.015 in
