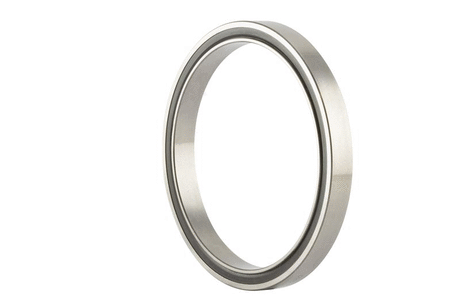

JU042CP0-RBC - Thin Section Ball Bearings - Sealed (Molded) Radial Contact, C-Type, JU Series - 4.25" Bore, 5" OD, 0.5" Width
Unit of Measure
Specifications
Industry Standards/Certifications |
N/A AISI 52100 |
Type |
N/A Thin Section Ball Bearings |
Series |
N/A RBC® |
Material |
N/A 52101 Bearing Quality Steel |
Cage Material |
N/A Brass/Non-Metallic |
Finish |
N/A Uncoated |
Enclosure |
N/A Sealed (Molded) |
Clearance |
N/A C0 |
Precision Rating |
N/A ABEC 1F |
Bore Shape |
N/A Round |
Outside Ring Shape |
N/A Straight |
Include Snap Ring |
N/A No |
Filling Slot |
N/A Non-Fill Slot |
Number of Rows |
N/A 1 |
Rotational Speed [Max]-Grease |
N/A 3460 rpm |
Rotational Speed [Max]-Oil |
N/A 4320 rpm |
Speed [Max] |
N/A 4320 rpm |
Operating Temperature [Min] |
N/A -60 ºF |
Operating Temperature [Max] |
N/A 250 ºF |
Dynamic Radial |
N/A 1320 lbf |
Static Radial |
N/A 2220 lbf |
Weight |
N/A 0.61 lb |
